Steel Cord Belts

Steel Cord Conveyor Belt

Name: Steel Cord Conveyor Belt
Brand: Somi Conveyor Beltings Ltd.

Epitome of Strength and Durability for Material Transportation

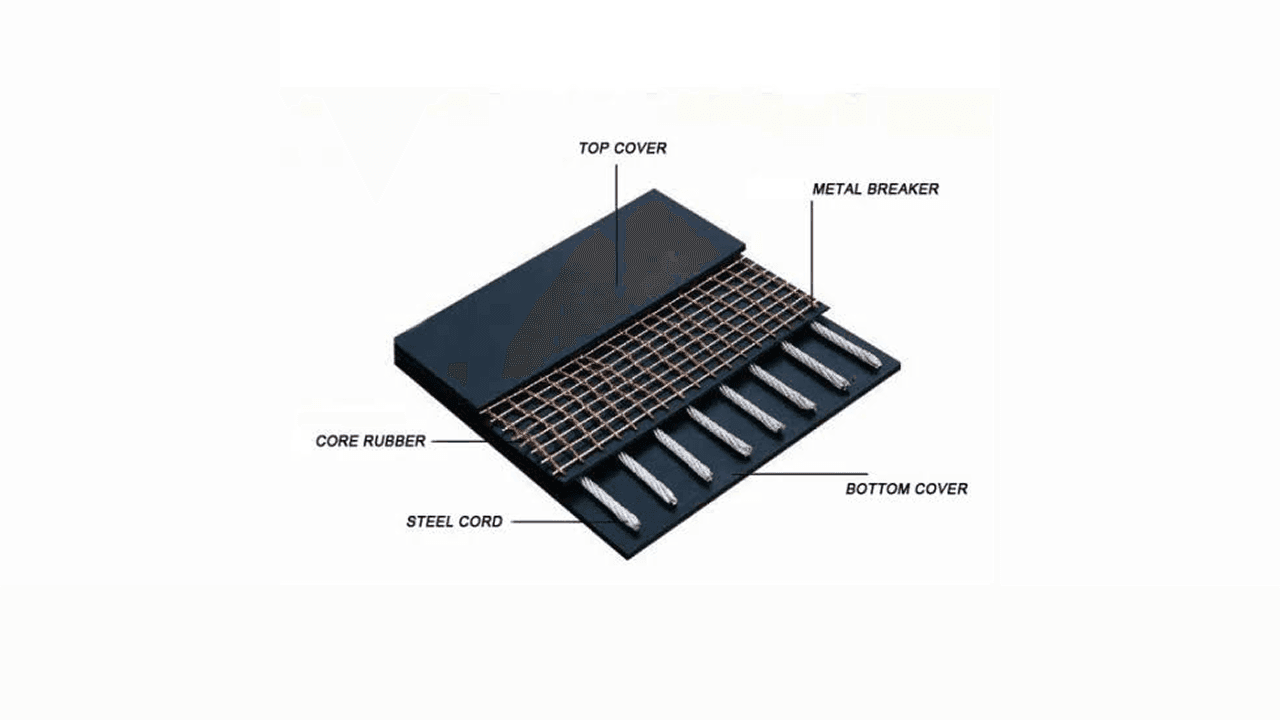

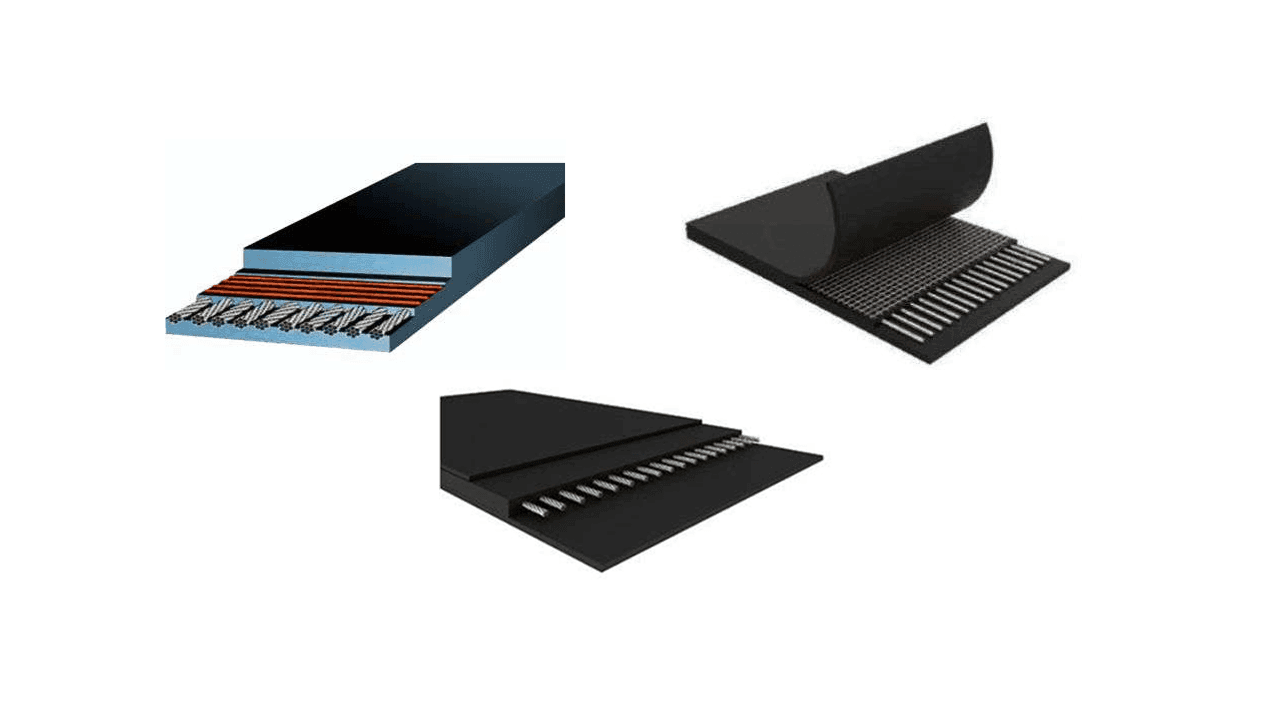

Somi Conveyor Beltings is a renowned manufacturer specializing in high-quality steel cord conveyor belts. With years of expertise and a commitment to excellence, we provide durable and reliable conveyor belts designed to meet the demands of various industries. Steel Cord Conveyor Belts are the epitome of strength and durability in the world of material transportation, engineered with precision to ensure unparalleled performance. Featuring robust steel cables embedded in rubber compounds, these belts offer exceptional tensile strength (500-10000 N/mm), minimal elongation, and superior stability, making them the preferred choice for diverse applications.

Send Enquiry

Benefits

Why industries choose steel cord conveyor belts

Operating tensions up to 10000 kN/m — only viable option beyond 2500 kN/m
Lower factor of safety (6.67 vs 10) — replace with smaller-rated belt for cost savings
Elongation under 0.25% — allows significantly smaller takeup lengths
Low elongation + high strength — longer centre distances between pulleys
Thinner carcass — smaller pulley diameters and reduced energy consumption
Higher rubber proportion — superior impact absorption for heavy individual pieces
Perfect troughing on deep idler sets — easier training and greater capacity
Thicker cover rubber for same rating — longer life than equivalent fabric belts
Splices achieve near 100% of belt rated strength and last as long as the belt
Repairable via hot or cold vulcanization — covers replaceable to fully rejuvenate

Standard Steel Cord Range (DIN 22131)

Steel cord belt specifications per DIN 22131

ST Rating	Recommended Cord Dia (mm)	Pitch (mm) ±1.5	Belt Width												Minimum Recommended Pulley Diameters (mm) for MAWT utilisation > 60%
ST Rating	Recommended Cord Dia (mm)	Pitch (mm) ±1.5	800	900	1000	1050	1200	1400	1500	1600	1800	2000	2200	2400	A	B	C
500	2.6	12	64	71	81	84	97	114	122	131	147	164	181	197	500	400	315
560	2.7	12	64	71	81	84	97	114	122	131	147	164	181	197	500	400	315
630	2.9	12	64	71	81	84	97	114	122	131	147	164	181	197	500	400	315
710	3	12	64	71	81	84	97	114	122	131	147	164	181	197	630	500	400
800	3.1	12	64	71	81	84	97	114	122	131	147	164	181	197	630	500	400
900	3.3	12	64	71	81	84	97	114	122	131	147	164	181	197	800	630	500
1000	3.5	12	64	71	81	84	97	114	122	131	147	164	181	197	800	630	500
1120	3.7	12	64	71	81	84	97	114	122	131	147	164	181	164	800	630	500
1250	4.2	14	55	61	69	72	84	98	104	112	127	141	155	169	800	630	500
1400	4.5	14	55	61	69	72	84	98	104	112	127	141	155	169	800	630	500
1600	5	15	50	57	64	67	77	90	97	104	117	130	144	157	1000	800	630
1800	5.4	15	50	57	64	67	77	90	97	104	117	130	144	157	1000	800	630
2000	6	15	50	57	64	67	77	90	97	104	117	130	144	157	1000	800	630
2250	6.2	15	50	57	64	67	77	90	97	104	117	130	144	157	1000	800	630
2500	6.6	15	50	57	64	67	77	90	97	104	117	130	144	157	1250	1000	800
2800	7	15	50	57	64	67	77	90	97	104	117	130	144	157	1250	1000	800
3150	7.4	15	50	57	64	67	77	90	97	104	117	130	144	157	1250	1000	800
3550	8	15	50	57	64	67	77	90	97	104	117	130	144	157	1400	1250	1000
4000	8.6	15	50	57	64	67	77	90	97	104	117	130	144	157	1400	1250	1000
4500	9.2	16	46	52	59	65	71	84	90	96	109	121	134	146	1400	1250	1000
5000	10.4	17	43	48	55	60	66	78	84	90	102	113	125	137	1600	1250	1000
5400	11	17	43	48	55	60	66	78	84	90	102	113	125	137	1600	1250	1000
6300	11.6	17	43	48	55	60	66	78	84	90	102	113	125	137	2000	1800	1600

Standard Steel Cord Range (AS 1333)

Steel cord belt specifications per AS 1333

ST Rating	Recommended Cord Dia (mm)	Pitch (mm) ±1.5	Belt Width												Minimum Recommended Pulley Diameters (mm) for MAWT utilisation > 60%
ST Rating	Recommended Cord Dia (mm)	Pitch (mm) ±1.5	800	900	1000	1050	1200	1400	1500	1600	1800	2000	2200	2400	A	B	C
500	2.6	13.8	56	63	70	74	84	99	106	113	128	142	156	170	500	400	315
560	2.8	13.8	56	63	70	74	84	99	106	113	128	142	156	170	500	400	315
630	3	13.8	56	63	70	74	84	99	106	113	128	142	156	170	500	400	315
710	3.1	13.8	56	63	70	74	84	99	106	113	128	142	156	170	630	500	400
800	3.3	13.8	56	63	70	74	84	99	106	113	128	142	156	170	800	630	500
900	3.8	15.3	50	56	63	66	76	89	96	102	115	128	141	154	800	630	500
1000	4	15.3	50	56	63	66	76	89	96	102	115	128	141	154	800	630	500
1120	4.3	15.3	50	56	63	66	76	89	96	102	115	128	141	154	800	630	500
1250	4.5	15.3	50	56	63	66	76	89	96	102	115	128	141	154	800	630	500
1400	4.8	15.3	50	56	63	66	76	89	96	102	115	128	141	154	1000	800	630
1600	5.5	17.3	45	50	56	59	67	79	85	90	102	113	124	136	1000	800	630
1800	5.9	17.3	45	50	56	59	67	79	85	90	102	113	124	136	1000	800	630
2000	6.4	17.3	45	50	56	59	67	79	85	90	102	113	124	136	1000	800	630
2250	6.8	17.3	45	50	56	59	67	79	85	90	102	113	124	136	1250	1000	800
2500	7.4	19.4	40	45	50	52	60	70	75	81	91	101	111	121	1250	1000	800
2800	8	19.4	40	45	50	52	60	70	75	81	91	101	111	121	1400	1250	1000
3150	8.6	19.4	40	45	50	52	60	70	75	81	91	101	111	121	1400	1250	1000
3550	9.2	19.4	40	45	50	52	60	70	75	81	91	101	111	121	1400	1250	1000
4000	9.8	19.4	40	45	50	52	60	70	75	81	91	101	111	121	1600	1400	1250
4500	10.4	19.4	40	45	50	52	60	70	75	81	91	101	111	121	1600	1250	1000
5000	11	19.4		45	50	52	60	70	75	81	91	101	111	121	1600	1250	1000
5600	11.8	19.4		45	50	52	60	70	75	81	91	101	111	121	2000	1800	1600
6300	12.8	20		43	48	50	58	68	73	78	88	98	108	118	2000	1800	1600

Applications & Industries

Coal mining operations - heavy load handling
Cement plants - raw material and clinker transportation
Harbors and port terminals - bulk material handling
Metallurgical facilities - steel production
Power stations - coal and ash handling
Chemical industries - demanding environments
Long conveyor systems requiring durability and reliability
Heavy-duty material transportation applications
